Pressure Treatment: Dynamic data guide orthotic therapy

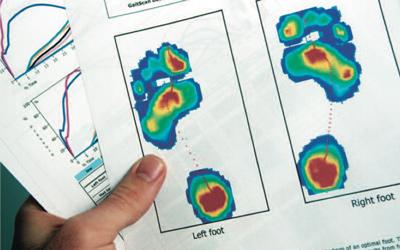

Image courtesy of novel.

Dynamic pressure measurement systems aren’t just for research any more. The technology optimizes outcomes by enabling practitioners to prescribe orthoses that address particular gait abnormalities and to quantify the biomechanical effects.

by Cary Groner

Lower extremity practitioners have used static pressure measurements for decades to guide the fabrication of foot orthoses. Dynamic measurement systems now gather plantar pressure data while the patient is walking; this offers clinicians a more sophisticated evaluation of gait biomechanics, as well as an opportunity to make more appropriate orthoses and adjust them based on real-time performance. And although dynamic systems have yet to gain wide acceptance in clinical practice, their increasing use in research is pushing them into the offices of practitioners who can no longer ignore the obvious advantages they offer.

Dynamic systems take two basic forms: a mat that patients walk across barefoot, or in-shoe devices that can measure the effect of a shoe or orthosis on plantar pressures. Each approach has its own strengths, and in fact some clinicians are concluding that using them together may be the best option of all.

Diabetic foot care

One obvious application of such technology is in assessing the risks of foot ulceration in diabetes patients, and in determining how well offloading strategies have actually  worked (see “Diabetes experts focus on foot ulcer recurrence.”)

In one of the earliest studies, for example, researchers reported in 1999 that use of a dynamic in-shoe pressure-measurement system (hereafter DIPS) helped determine which shoe and orthoses designs, materials, and combinations most effectively reduced plantar walking pressures in diabetes patients at high risk for foot ulcers.1 Then, in 2004, researchers at Ranchos Los Amigos National Rehabilitation Center in Los Angeles reported that in patients with a history of diabetic foot ulcers, modification of tri-laminate custom orthoses based on a DIPS significantly reduced maximum mean peak pressures compared to standard flat foam orthoses.2

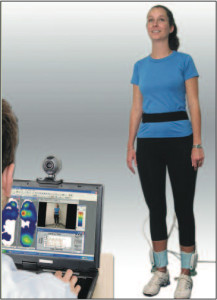

Images courtesy of Tekscan.

“If you want to know whether the footwear prescription is effectively relieving the pressure, you have to measure,” said Peter Cavanagh, PhD, DSc, professor and vice chair for research in the department of orthopedics and sports medicine at the University of Washington Medical Center in Seattle. “We don’t know the level of pressure that causes tissue damage, and it might be different for everyone. But to prevent reulceration, we have to strive to get pressures down toward the 200 kPa level.”

This threshold level came out of a study he and several colleagues conducted in Sweden and published in 2009.3

Cavanagh explained that almost all diabetic insoles today are made on the basis of foot shape only.

“That’s important but insufficient,” he said. “It is essential that you change the way pressure is distributed under the foot. Then the question becomes, what is the link between the pressure data you collect and the device based on it?”

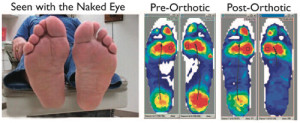

Images courtesy of The Orthotic Group.

Cavanagh is one of the founders of a company that seeks to develop a new approach to the development of therapeutic insoles based on dynamic pressure measurements. In 2008 he and several colleagues reported in Diabetes Care that, compared with custom insoles based only on shape, those designed to take both shape and pressure data into account resulted in better offloading of high-pressure areas.4 On average, peak pressure was reduced by 32% and 21%, and force-time integral in the regions of elevated peak pressure was reduced by 40% and 34%, compared with two different insoles made based on foot shape alone. The authors noted that pressure reduction was achieved by a greater load transfer to the midfoot—not typically a site of diabetic foot ulceration—without additional loading of forefoot structures.

At the Southern Arizona Limb Salvage Alliance (SALSA) in Tucson, clinicians use a DIPS to determine whether orthoses and surgical procedures have had the desired effect. According to SALSA co-director Joseph L. Mills, MD, before dynamic measurements were available it was common for diabetes patients to develop a new ulcer in the area to which pressure was redirected.

“After you operate on the foot, what you think you’ve corrected may have just shifted the pressure to another area that is then at risk,” said Mills, who is also professor and chief of vascular and endovascular surgery at the University of Arizona College of Medicine. “Now we’re better able to identify new spots that we need to protect.”

Athletic applications

Dynamic pressure measurement has gained a following among sports medicine practitioners as well. It provides a more accurate way to assess the gait kinetics and kinematics that affect performance and risk of injury, and to evaluate the orthoses that result from those assessments.

For example, in 2008, U.K. researchers conducted a study in which subjects ran barefoot over a force plate and were prescribed orthoses based on the data collected. They repeated the assessment using neutral shoes, then did so again after custom orthoses were added to the shoes.5 The scientists reported that the orthoses resulted in a significantly more lateral concentration of pressure, which was consistent with the kinematic finding that the orthoses significantly increased initial inversion angle. The orthoses were also associated with reduced peak rearfoot eversion and eversion velocity and increased peak ankle and initial dorsiflexion angles.

In-shoe systems increase the level of evaluation still further. A 2007 article in the Journal of the American Podiatric Medical Association (JAPMA) described the use of a DIPS to analyze athletes’ foot and lower-extremity function before and after treatment with custom orthoses, with a focus on sagittal plane biomechanics. The aim was to identify functional asymmetries that could lead to gait-related pathologies, use the data to fabricate corrective orthoses, then assess those orthoses’ effects.6 Four illustrative cases were presented.

“This technology makes a huge difference,” said Bruce Williams, DPM, the study’s coauthor, who is in private practice in Merrillville, IN. “To address the problems athletes face, you have to understand what the foot is trying to do. In-shoe pressure measurement lets me see where there are stoppages, delays in motion, certain angles that can represent when the ankle isn’t moving properly.”

For example, Williams explained, a delay in transfer of force once the runner begins to lift the heel may indicate an unstable midfoot or a functional hallux limitus.

“It gives you a quantifiable reason for what you want to do with an orthosis,” he continued. “It lets you evaluate that orthosis, make a small modification, and recast to see if you were right.”

Williams particularly values information about center of pressure and force-time curves.

“Center of pressure data can give you ideas about how quickly each foot is moving compared to the other, whether the foot is pronating or supinating more, things like that,” he said. “The force-time curves can show you similar things, and often you can correlate one with the other to get an indication that there is a problem occurring during that segment of motion of the foot.”

The case studies cited in Williams’ article are compelling, to say the least. Four athletes with longstanding injuries and pain syndromes reported complete alleviation of symptoms within weeks.

General clinical uses

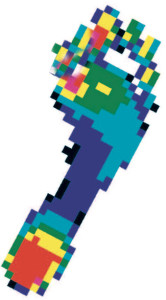

Photo courtesy of Tekscan

Researchers and clinicians using in-shoe systems to evaluate and modify orthoses report similarly encouraging results. In one study, researchers used a DIPS to assess the effect of differently designed orthoses on the initiation of plantar surface loading.7 They found that rigid orthoses alter the timing of medial forefoot loading during walking, whereas soft orthoses permitted a more normal forefoot-to-hindfoot movement pattern.

In another study, scientists used a DIPS as part of their assessment of the effects of over-the-counter (OTC) foot orthoses. 8 Radiographic measurements suggested that the orthoses were effective in changing foot shape, which was associated with relief of conditions including hallux valgus pain, arch pain, and back pain. The researchers used the DIPS to assess center of pressure variability during a postural stability test and found that stability improved with the orthoses, although that finding was not statistically significant.

“You absolutely get information you can’t get any other way,” said Adam Landsman, DPM, PhD, one of the study’s coauthors. Landsman is an assistant professor of surgery at Harvard Medical School and chief of podiatry at Cambridge Health Alliance in Cambridge, MA. “For research, it is extremely valuable because there is no other way to make numerical measurements. As a clinical tool, I think it is helpful in specific circumstances.”

Landsman acknowledged that dynamic measurement systems have not gained wider use in clinical practice partly because the assessments are time consuming and insurance companies usually won’t pay for them. Nevertheless, he does use the technology to confirm that he has unloaded an ulcer site in a patient with diabetes, or to assess how orthoses are redistributing pressure when he has watched patients walk and remains uncertain about what’s happening biomechanically.

Landsman, who took his current jobs recently, said, “I’m a hospital-based podiatrist now, and one of the first things I requested was one of these machines, because they’re so valuable for getting information. Now it makes sense, because we’re paid based on performance.”

In-shoe systems have also proved valuable for assessing interventions for people with metatarsalgia, one study shows. Earlier this year, researchers reported in the Journal of Prosthetics & Orthotics (JPO) that a DIPS measured a mean drop of 121 kPa in peak pressure under the metatarsal head during walking when subjects with metatarsal pain used a specific shoe modification.9

James Hackney, PT, PhD, an assistant professor of physical therapy at Missouri State University in Springfield and one of the article’s coauthors, told LER that although he is primarily a researcher, the study was undertaken at the urging of clinicians who were trying to discover the most efficacious ways to help their patients.

“These systems are certainly the most accurate way of assessing what is taking place inside the shoe,” he said. “The only disadvantage is that you only get data about vertical forces, not about shear forces.”

Hackney and his colleagues measured a couple of dependent variables.

“The change in pressure as a result of treatment we could measure immediately,” he said.

Later, at an average follow-up of 38.2 days, they measured outcomes using the 88-point Lower Extremity Functional Scale.

“At that point, we found that the scale improved by 13.3 points, which was quite significant,” he said.

Technological cross-fertilization

The availability of DIPS has encouraged clinicians and researchers to consider how it might augment other technologies. At the Medical College of Wisconsin, for example, scientists have wedded DIPS results to 3-D data from CT scans, then incorporated the results into a CAD rapid prototyping machine, using proprietary software they have developed. The result is a quickly produced custom orthosis.

To develop the technology, project leader Xue-Cheng Liu, MD, PhD, collaborated with Robert Rizza, PhD, of the Milwaukee School of Engineering. So far they have used the approach to manufacture orthoses for a small number of children with idiopathic clubfoot.

“We’re still in the development stages,” Liu said. “We have five normal children, average age seven, and five children with eight club feet. We ask the patients to walk with shoes so we can get all the dynamic data, then we convert that into the CAD models and use finite element analysis to predict how the orthoses will affect foot pressure. Although we only have preliminary, short-term outcomes, pressure data has significantly improved.”

Pediatric and screening applications

At Baylor College of Medicine in Houston, Jeffrey Ross, DPM, MD, has developed a unique approach to assessing the risk of lower-extremity injury to obese children attending a weight-loss summer camp. Ross, an assistant clinical professor of medicine at Baylor and chief of the diabetic foot clinic at Houston’s Ben Taub Hospital, realized that children more prone to injury were less likely to be able to complete the exercise programs designed to help them lose weight.

“We profiled the kids, evaluated them biomechanically, then did computerized and visual gait analysis to determine who would be at more risk of injury during the two-week period,” he said. “A pronated, flat-footed, obese child is at much higher risk for knee pain, ankle pain, plantar fasciitis, Achilles tendinitis, shin splints, and lower back pain than a kid of normal weight.”

The first year, Ross correctly predicted which children would be injured about 83% of the time; the second year, after a few tweaks, the prediction rate was 90%. Biomechanical and computer evaluations showing a significant flat foot were particularly associated with a high risk for injury or complaint, as were structural and functional hallux limitus. Ross presented the research at the annual meeting of the American Podiatric Medical Association in Seattle.10

“It’s not rocket science,” he said. “People who know biomechanics—who know how to look at a foot—can guess which kids are going to be at risk.”

The assessments would ideally be used to provide orthoses or other interventions for the children at highest risk before they came to camp. Beyond that, however, is the consideration that as they grow into adulthood, people who were obese as children are much more likely to need total hip and knee replacements, or have collapsed, pronated feet and other problems. The diabetes part of the equation goes without saying.

“This has tremendous implications not only in podiatry, but for how we recognize and prevent lower extremity injuries in obese children in the future,” Ross said.

For such screening, Ross prefers a pressure mat to an in-shoe system.

“With both technologies you can pick up gait asymmetries, supination and pronation, whether one foot is hitting the ground sooner, if one is in propulsion longer, and if there is a limb-length discrepancy,” he said. “The only thing the mat can’t do is assess the effect of an orthosis in the shoe.”

This suggests a possible synthesis, he said; clinicians might do initial screening and assessments using a mat, then evaluate the effectiveness of orthoses with in-shoe devices.

“My staff can run the mat scans quickly and have them printed out, so they’re in the room with the x-ray when I come in to see the patient,” he said. “But if you want to be more clinically accurate, the in-shoe gait analysis is preferable.”

Into the clinic

It seems inevitable that DIPS will follow the typical pattern associated with research technology and become common in clinical practice. How quickly this happens depends on factors that include reimbursement, clinician awareness, and consumer demand.

Regardless, it’s clear that the approach will offer increasing advantages over static measurements in a variety of fields including diabetic foot care, athletic training, and pediatrics. Patients, who will find themselves leading more active and pain-free lives, have the most to gain.

Cary Groner is a freelance writer based in the San Francisco Bay area.

1. Birke JA, Foto JG, Pfiefer LA. Effect of orthosis material hardness on walking pressure in high-risk diabetes patients. JPO 1999;11(2):43-46.

2. Burnfield JM, Few CD, Whitney JA, et al. Influence of Pedar-based insert modifications on walking plantar pressures in persons with diabetes mellitus. Presented at the ninth annual meeting of the Gait and Clinical Movement Analysis Society, Lexington, KY, April 2004.

3. Owings TM, Apelqvist J, Stenstrom A, et al. Plantar pressures in diabetic patients with foot ulcers which have remained healed. Diabet Med 2009;26(11):1141-1146.

4. Owings TM, Woerner JL, Frampton JD, et al. Custom therapeutic insoles based on both foot shape and plantar pressure measurement provide enhanced pressure relief. Diabetes Care 2008;31(5):839-844.

5. Dixon SJ, McNally K. Influence of orthotic devices prescribed using pressure data on lower extremity kinematics and pressures beneath the shoe during running. Clin Biomech 2008;23(5):593-600.

6. Williams BE, Yakel JD. Clinical uses of in-shoe pressure analysis in podiatric sports medicine. J Am Podiatr Med Assoc 2007;97(1):49-58.

7. Cornwall M, McPoil T. The effect of foot orthotics on the initiation of plantar surface loading. Clin Biomech 1997;12(3):S4.

8. Landsman A, Defronzo D, Anderson J, Roukis T. Scientific assessment of over-the-counter foot orthoses to determine their effects on pain, balance, and foot deformities. J Am Podiatr Med Assoc 2009; 99(3):206-215.

9. Hackney JM, Hunt GC, Lerche FF, et al. An external shoe modification for reducing metatarsal head pressure in people with metatarsalgia. JPO 2010;22(1):37-42.

10. Ross J. Predicting overuse lower-extremity injuries in a two-week camp program for overweight and obese children utilizing computerized gait analysis and biomechanical screening: a randomized, controlled study. Presented at the annual meeting of the American Podiatric Medical Association, Seattle, July 2010.
